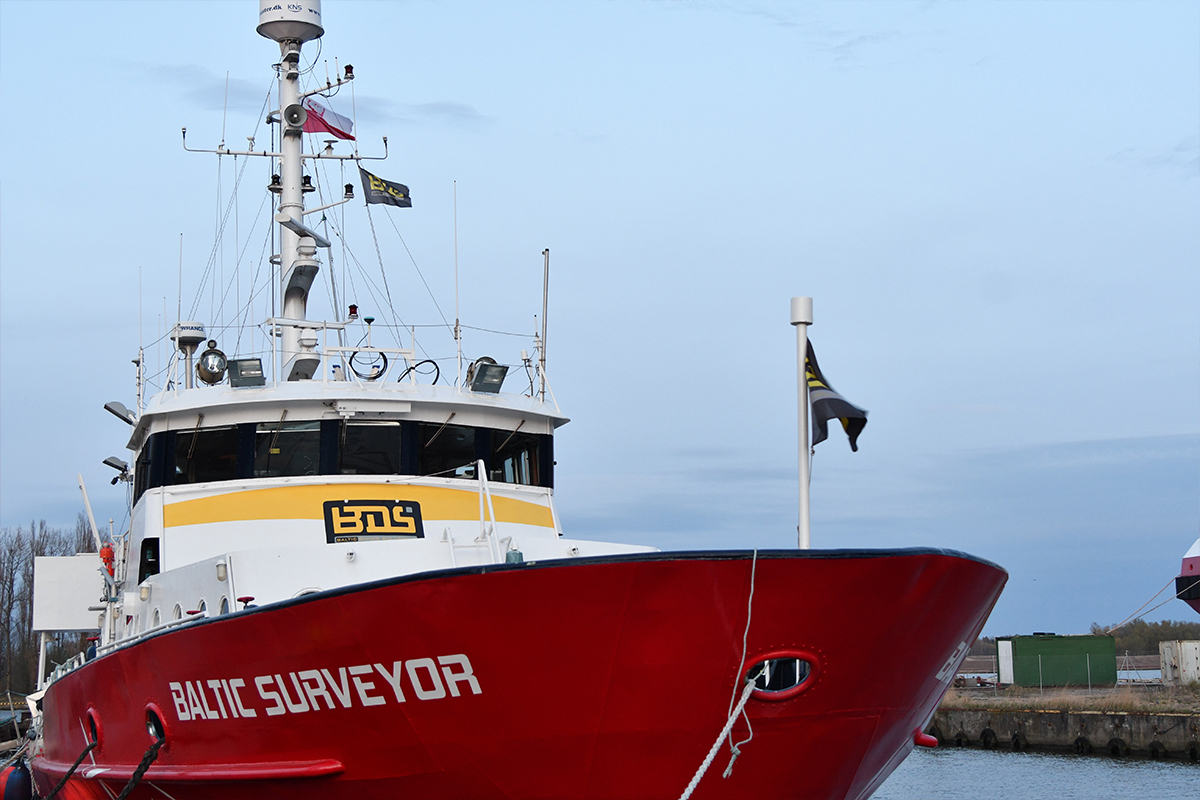

Type of Vessel
DP Survey & ROV Vessel

Classification/Flag
Flag: Polish
Call sign: TBA
Home port: Gdynia, Poland
Builder: Fr. Schweers
Classification: DNV
Hull material: aluminium
Transit: 10 knots

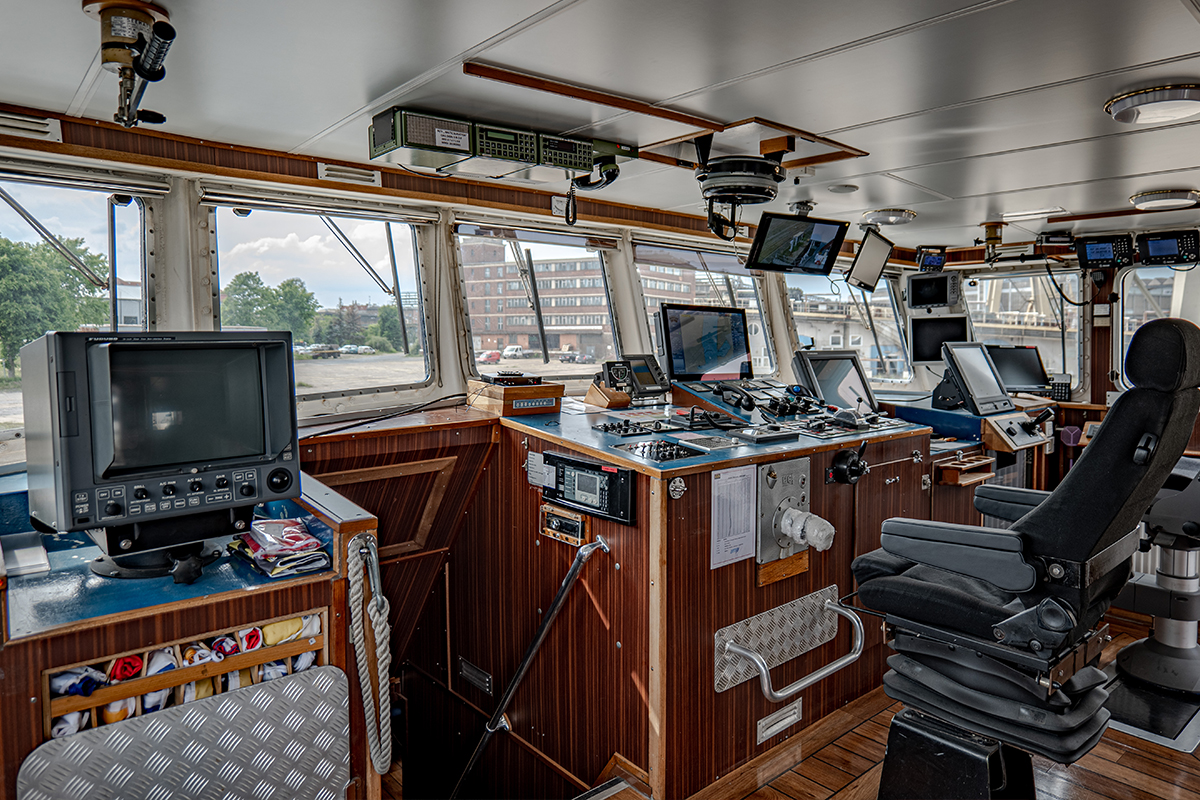

Navigation Aids
Systems: 2 Gyros, 2 DGPS receivers, 2 Wind sensors
DP System: Navis DP-1 Specification
Chart system: Transas NaviSailor 4000 dual ECDIS
Marine Echo Sounder: FURUNO Navigational Echo Sounder FE-700

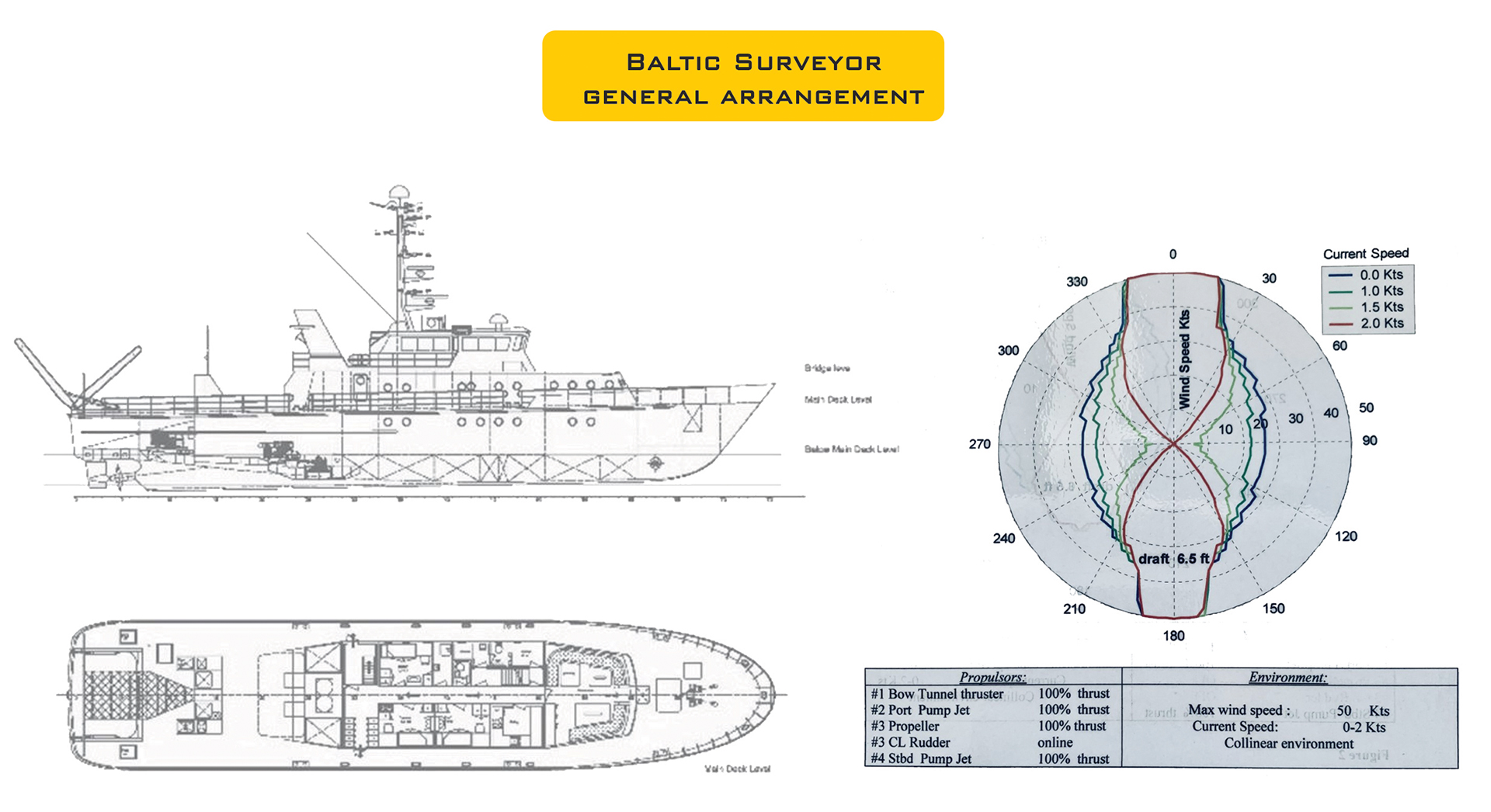

Tonnage & Dimensions
(GT) Gross Tonnage 258
(NT) Net Tonnage 77
Length: 38.4 m
Breadth: 7.8 m
Airdraft: 14.1 m
Draft: 2.1 m
Deck space: 40 m2

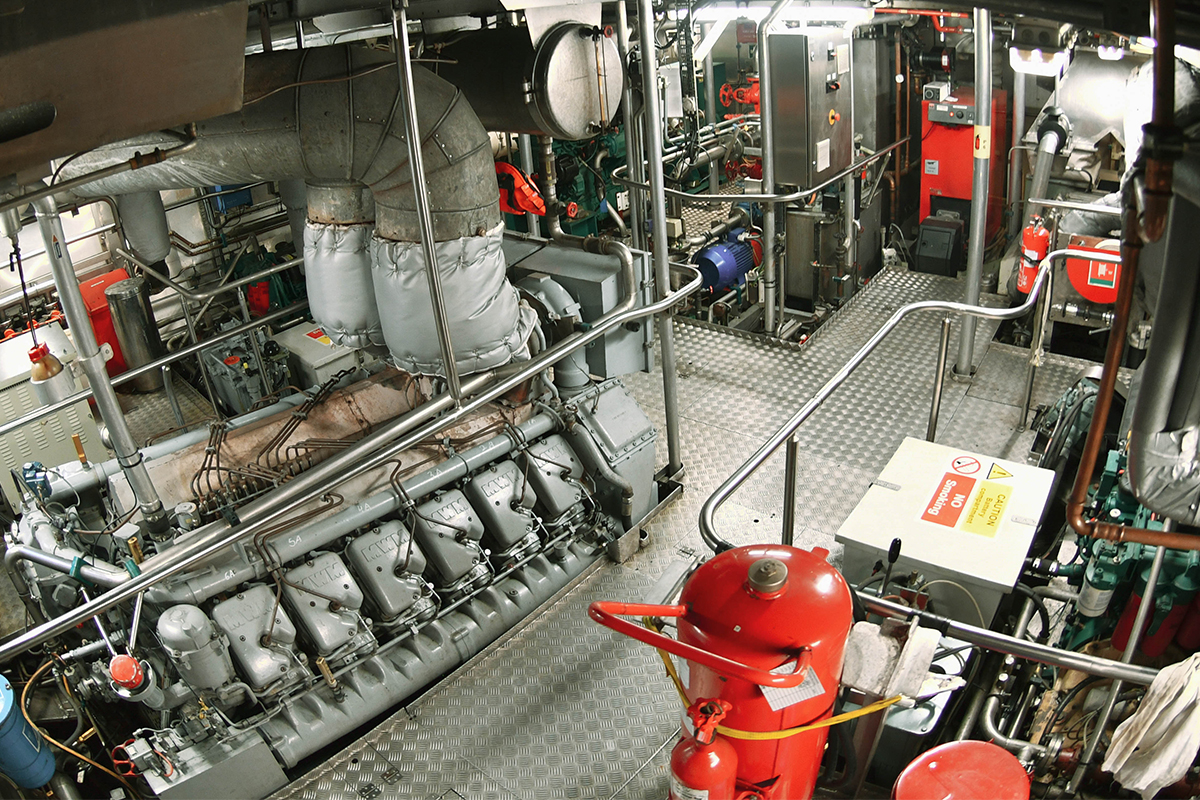

Engines
Main engine: 1 x 1000 kW CPP MWM TBD 604 V12
Auxiliary engines: 1 x 250 kW Deutz M413FR
1 x 300 kW Volvo D12
Thruster forward: 70 kW Jastram
Thrusters aft: 2 x 250 Kw Schottel pump jets Volvo D9

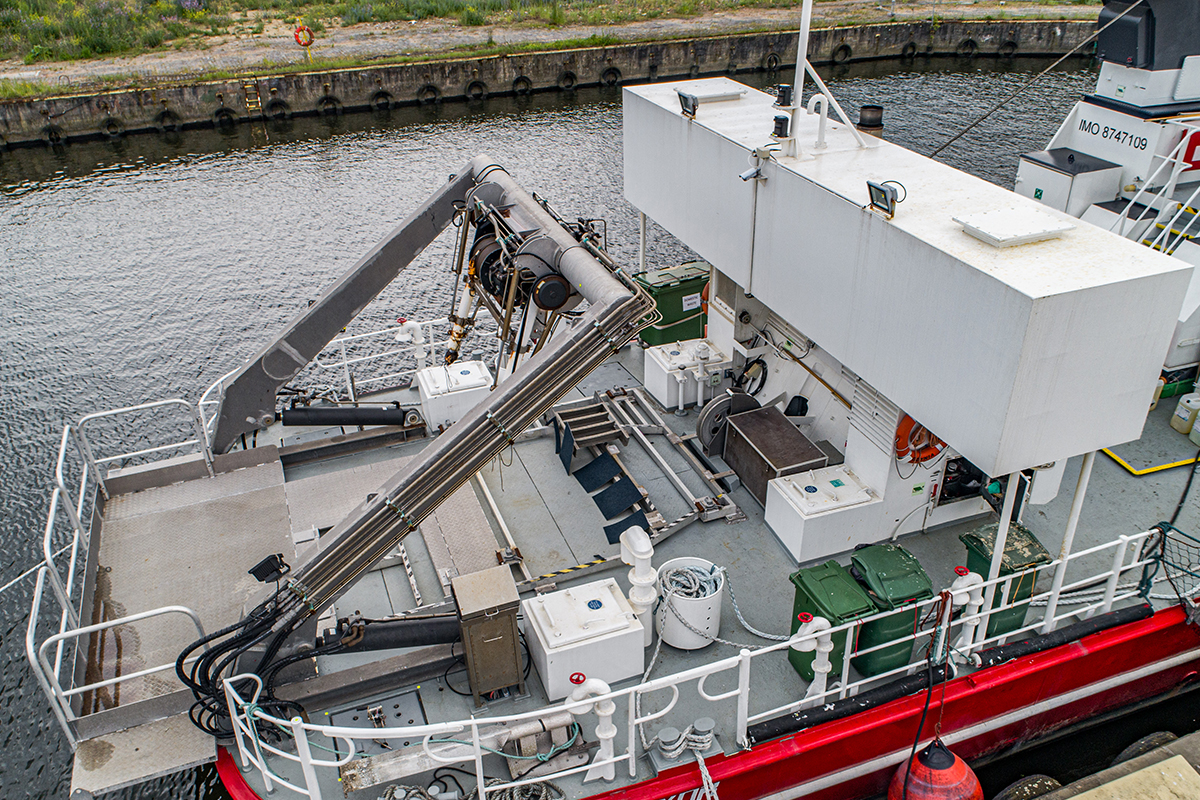

Deck and Survey Equipment
A-Frame: SWL 4 tons
Deck Crane: 0.65 t/m
Side poles 2 poles for various over the side mounted equipment
Moonpool: 2 aft moonpools 600mm x 800mm
Deck Generator: 1 x 90 kW Cummins 6BT5, 9-D
Anti rolling: Passive anti rolling tank - 60% rolling reduction

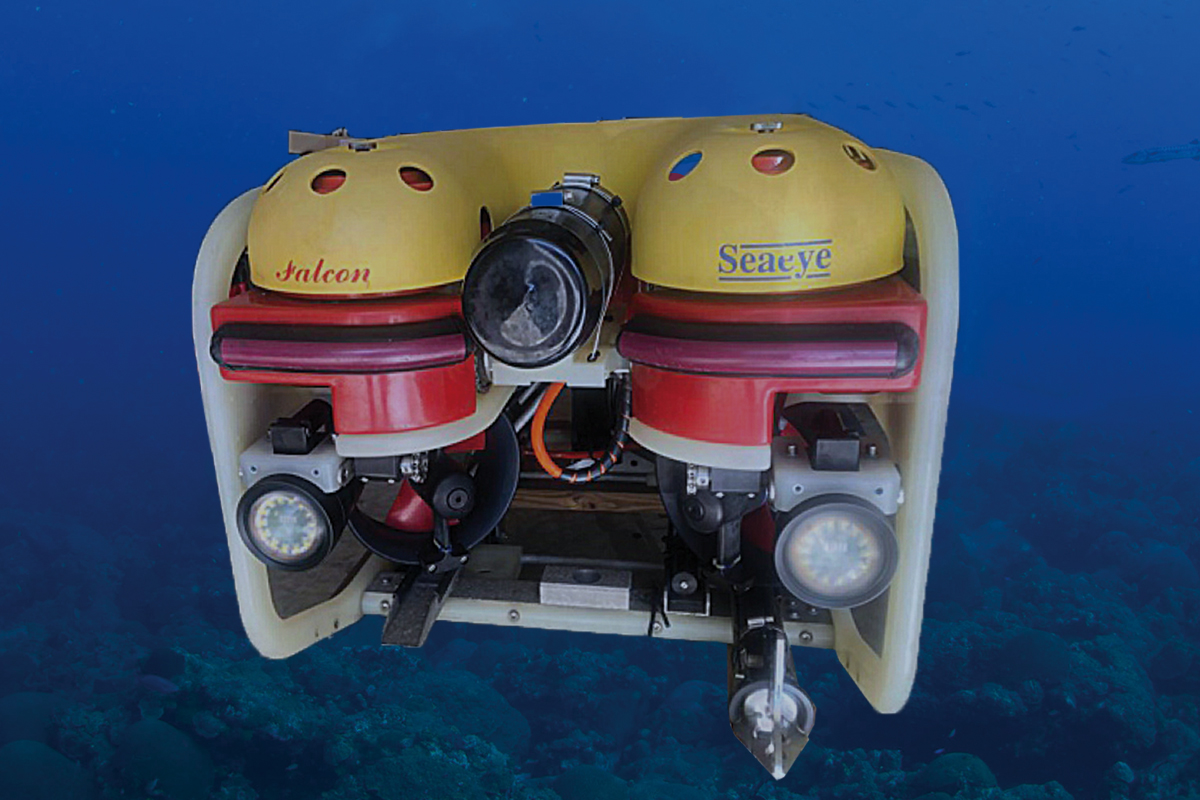

ROV: Saab Seaeye Falcon ROV
Survey room: 12m3 Survey room fully equipped

Capacity
Fuel tanks: 23000 l
Fresh water: 10000 l

Water Depth (LAT)
Multibeam (MB): 2.5 m*

Vessel Draft
Multibeam (MB): 2.1 m

Endurance Statement
10-15 days weather permitting (using ROV)
10-15 days weather permitting (MBES/SSS or other survey)

Fuel Consumption 24 h
Transit 2400 l
Survey operation 1000 l
DP/Rov 1500 l
WoW or alongside 250 l

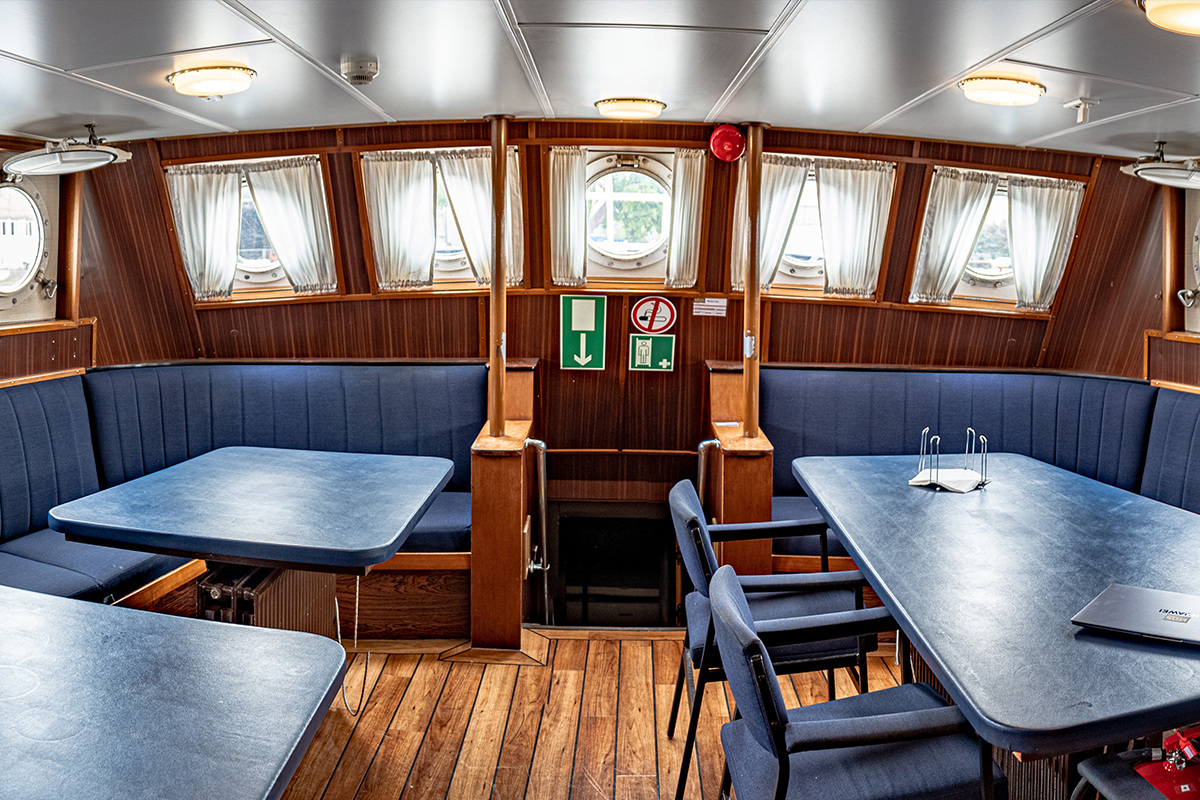

Accommodation
Cabins: 5 single, 5 double
Total of 10 cabins, 15 persons

Vessel Contact Phone No.
Cell No.: +48 798 268 698
V-sat: +45 82136413
Iridium: +881632738819

DP operation
Wind: 12-15 m/sec
Sea state: max 1.7- 2 m*
Current: 1.8- 2.5 knots*
* subject to site specific conditions

Survey Operation Max Criteria

Launch & recovery
Wind: 12- 15 m/sec
Sea state: max 1.2-1.5 m*
Current: 1.3 knots
* subject to site specific conditions

Multibeam
Wind: 15 m/sec
Sea state: max 1.5- 2.0*
Current: 3 knots*
* depending on direction
