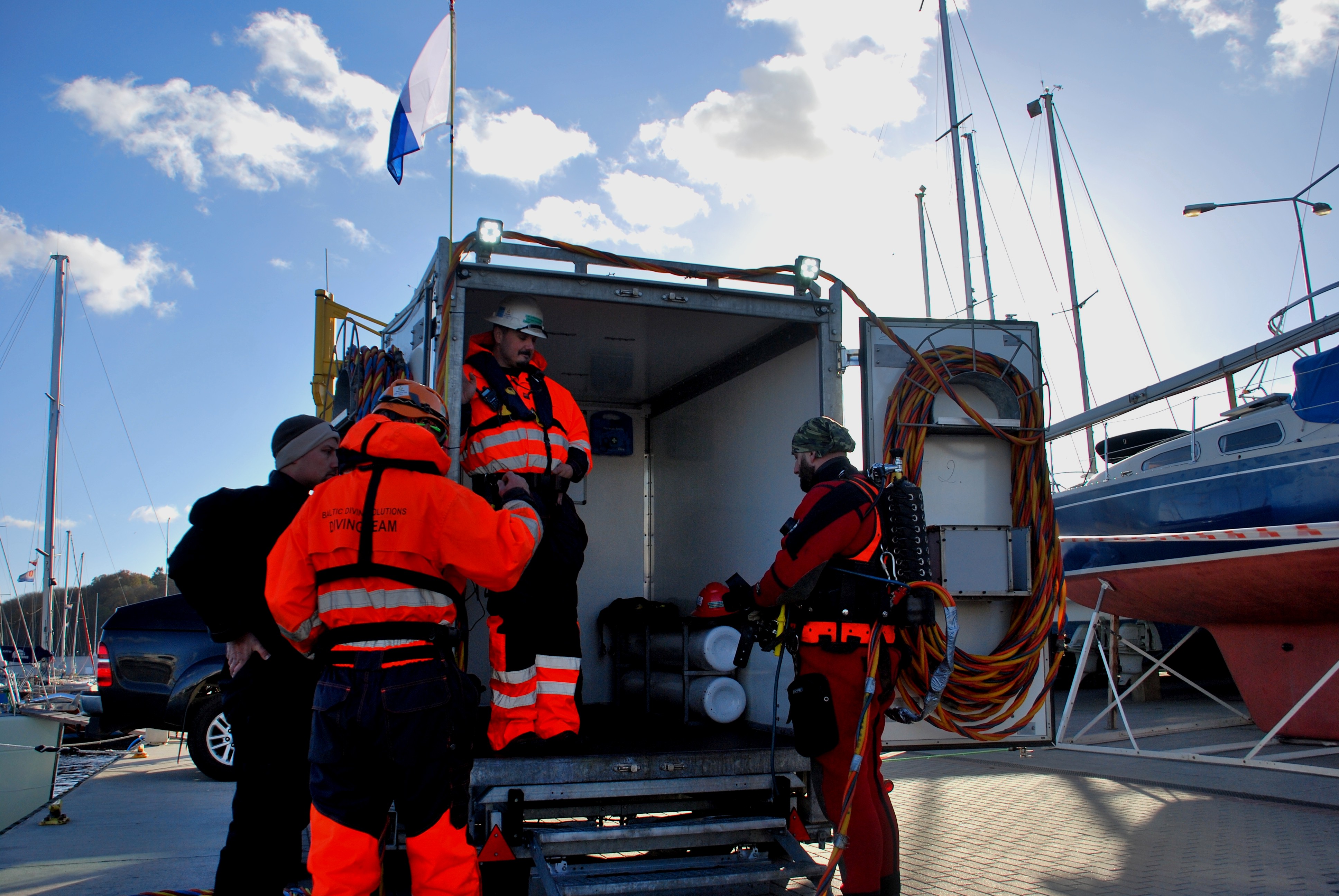

MDS-1 is two compartment, containerized diving system designed to improve efficiency and safety of diving work up to the depth of 50m. The system is developed as a highly mobile solution - it can be towed by 3,5t vehicle, on the lorry as a container or directly on the vessel, barge or pontoon. System is electrically and air self-supported for the operation up to 6h without a power source.
Diving system is equipped with following surface supply equipment:
- Diving helmet KM-27 and diving bandbask KMB-28
- Two R-Vest harnesses fitted with 6l 300 bar bail-out
- Two umbilicals 80m and 100m
- Diver two way communication system

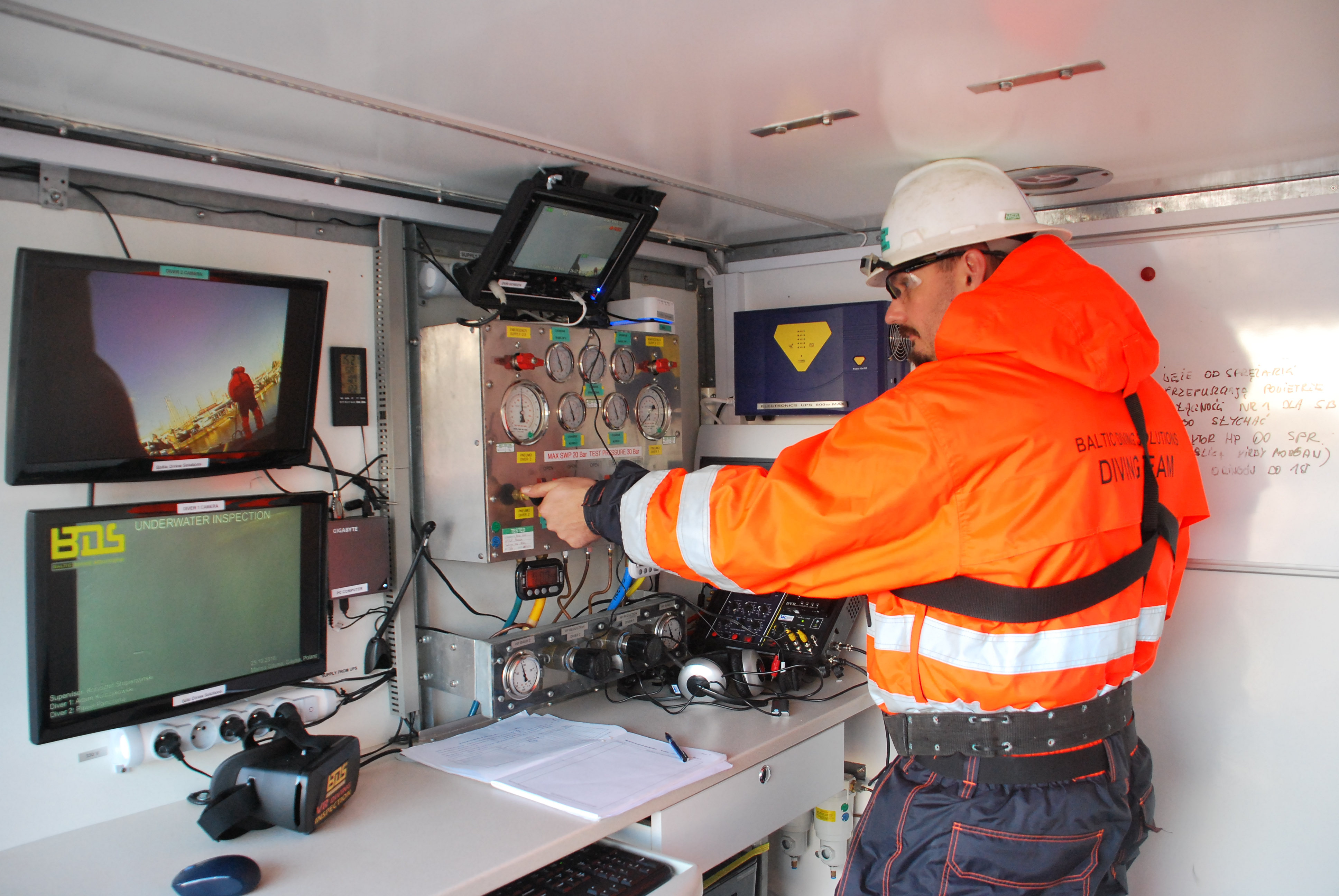

- Dedicated video system designed to support subsea inspections
- Three configurable video displays
- Two divers dive panel supplied by 3 sources
- Two HP air banks 100l 200 bar
- LP compressor with breathing air filtration unit
- HP compressor
- Wi-Fi router, computer and printer
- UPS electrical emergency system
- Power generator 6,5 kW 220V
- First aid kit, medical oxygen set, fire extinguisher
- Lifting bridle for crane operations
Installation of project specific equipment available on request
Dimensions:
- Container length 3,6m (5m including trailer)
- Container width 1,8m (2,3m including trailer)
- Container height 2,36m (2,72m including trailer)
- Equipped container weight 1500kg (2200kg including trailer)
System is available for hire as equipment unit or with a diving team certified according to request (Polish, HSE or IMCA certification applies).
